Specifications	Imperial	Metric
Cone Drive Part Number	CD-RK6-25N1Z
Reference Kaydon Part Number	RK6-25N1Z
Reference Silverthin Part Number	RK6-25N1Z
Reference Torriani Part Number	N/A
Reference Kinematics Part Number	N/A
Type	Flanged
Teeth	Internal

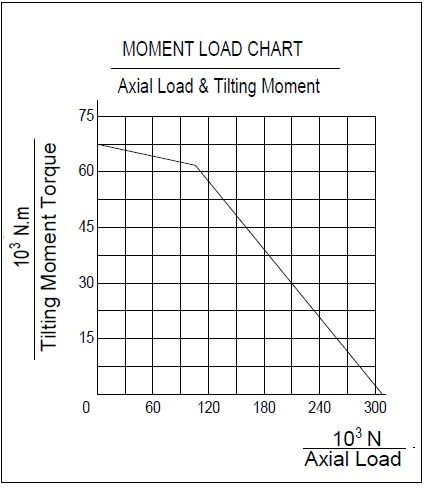

Max Moment Rating	49,800 ft-lbs	67,525 N-m
Approx. Weight	106 lbs	48.1 kg
Outer Diameter	29.45 in	748 mm
Inner Diameter	21.6 in	548.64 mm
Outer Bolt Circle Diameter	28.38 in	720.9 mm
Qty of Holes in Outer Ring	12
Outer Hole Size	0.688 in	17.5 mm
Inner Bolt Circle Diameter	23.63 in	600.2 mm
Qty of Holes in Inner Ring	18
Inner Hole Size	1/2 - 13 UNC-2B in	1/2 - 13 UNC-2B in

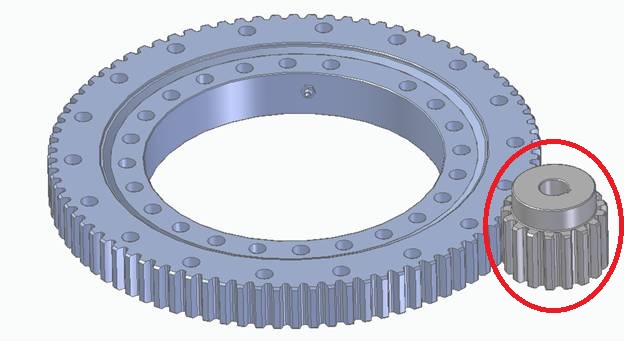

	Part No	PD (in)	Tooth Qty	Set Ratio
	39200001	3.500	14	6.29
	39200002	4.250	17	5.18

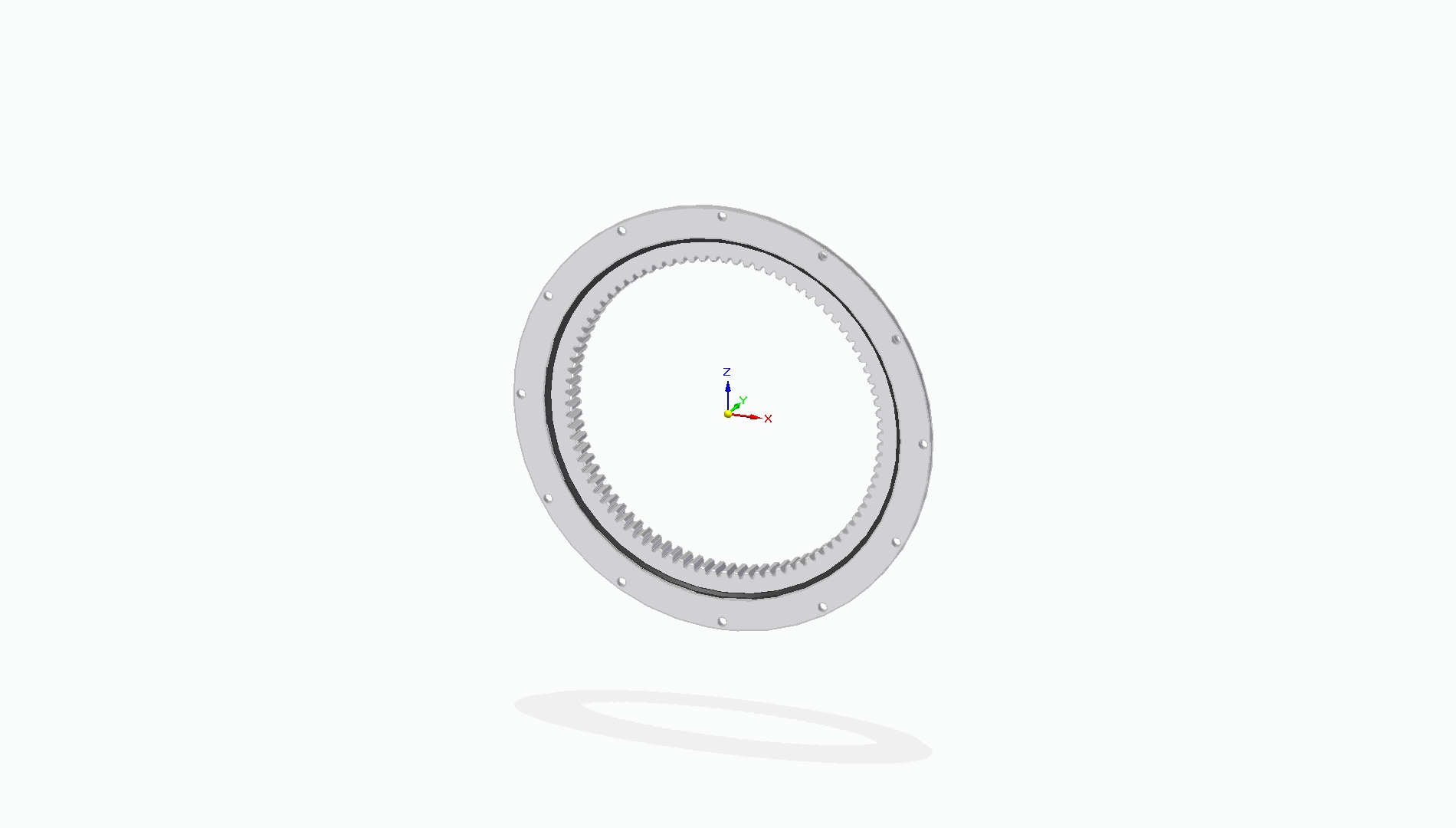

Note: If you are unable to view an active 3D PDF image, please use the button below to download the 3D PDF file and view with Adobe Reader
