Model : CD-MTO-705T
Specifications Imperial Metric
Cone Drive Part Number CD-MTO-705T
Reference Kaydon Part Number MTO-705T
Reference Torriani Part Number N/A
Reference Kinematics Part Number N/A
Type Standard
Teeth None

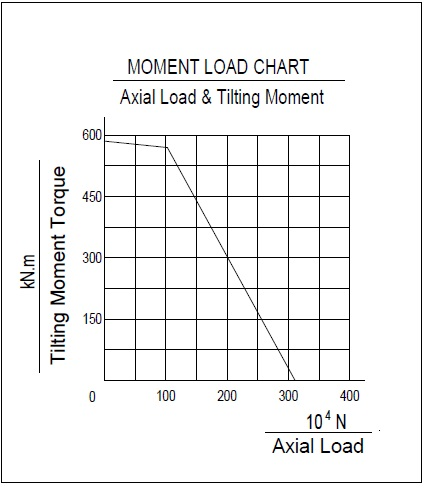

Max Moment Rating 443,000 ft-lbs 600,678 N-m
Approx. Weight 350 lbs 158.8 kg
Outer Diameter 38.201 in 970 mm
Inner Diameter 27.75 in 705 mm
Outer Bolt Circle Diameter 35.25 in 895 mm
Qty of Holes in Outer Ring 24
Outer Hole Size 7/8-9 UNC-2B in 7/8-9 UNC-2B in
Inner Bolt Circle Diameter 29.5 in 749 mm
Qty of Holes in Inner Ring 28
Inner Hole Size 7/8-9 UNC-2B in 7/8-9 UNC-2B in

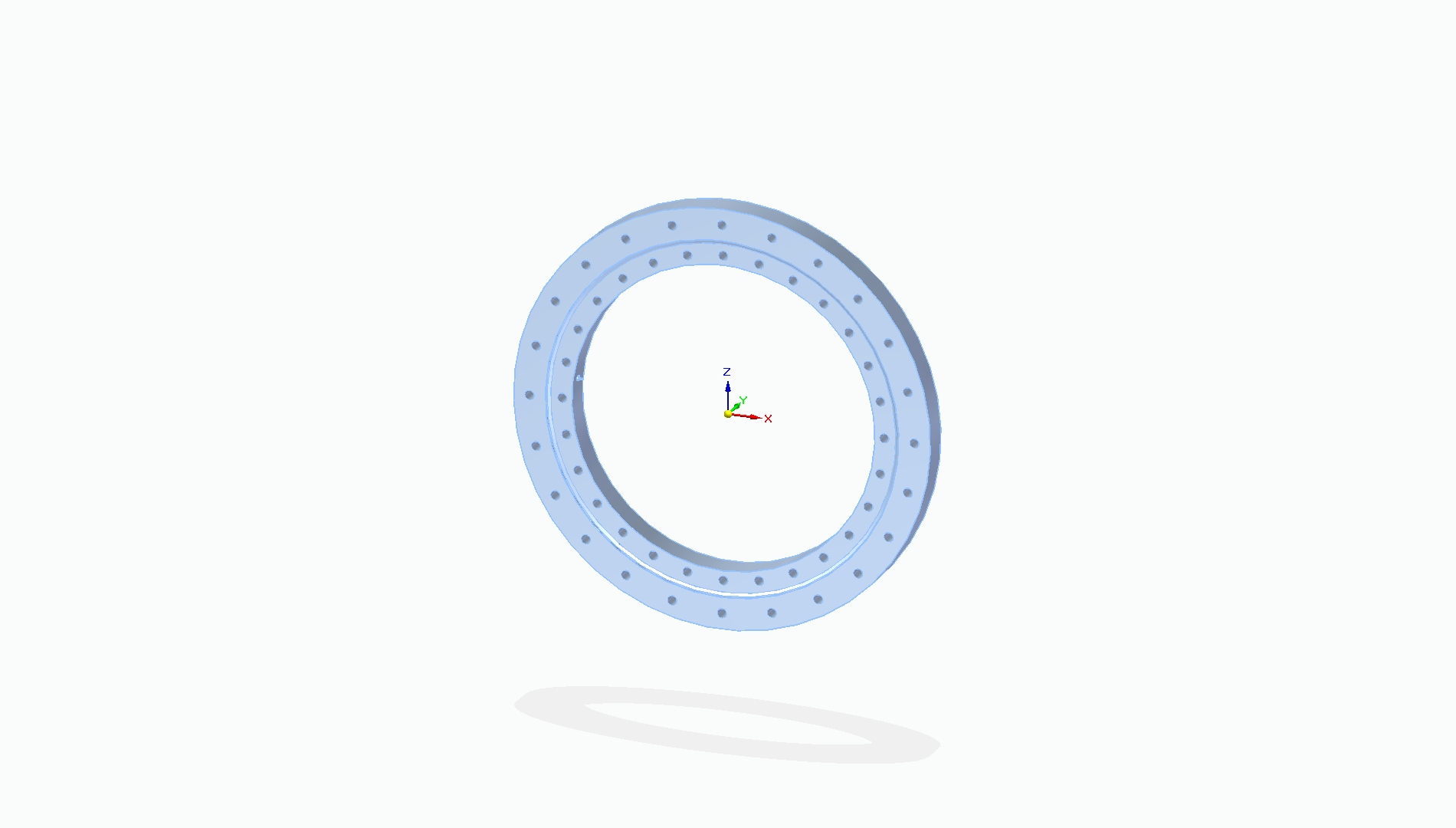

Note: If you are unable to view an active 3D PDF image, please use the button below to download the 3D PDF file and view with Adobe Reader
