Model : CD-MTO-415
Specifications Imperial Metric
Cone Drive Part Number CD-MTO-415
Reference Kaydon Part Number MTO-415
Reference Torriani Part Number N/A
Reference Kinematics Part Number N/A
Type Standard
Teeth None

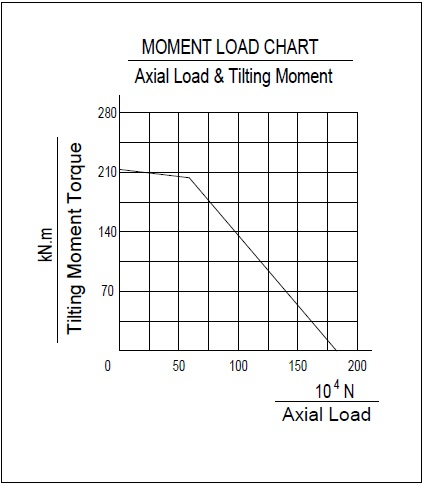

Max Moment Rating 159,000 ft-lbs 215,593 N-m
Approx. Weight 145 lbs 65.8 kg
Outer Diameter 24.65 in 626 mm
Inner Diameter 16.25 in 413 mm
Outer Bolt Circle Diameter 22.25 in 565 mm
Qty of Holes in Outer Ring 16
Outer Hole Size 0.827 in 21 mm
Inner Bolt Circle Diameter 17.75 in 451 mm
Qty of Holes in Inner Ring 20
Inner Hole Size 0.827 in 21 mm

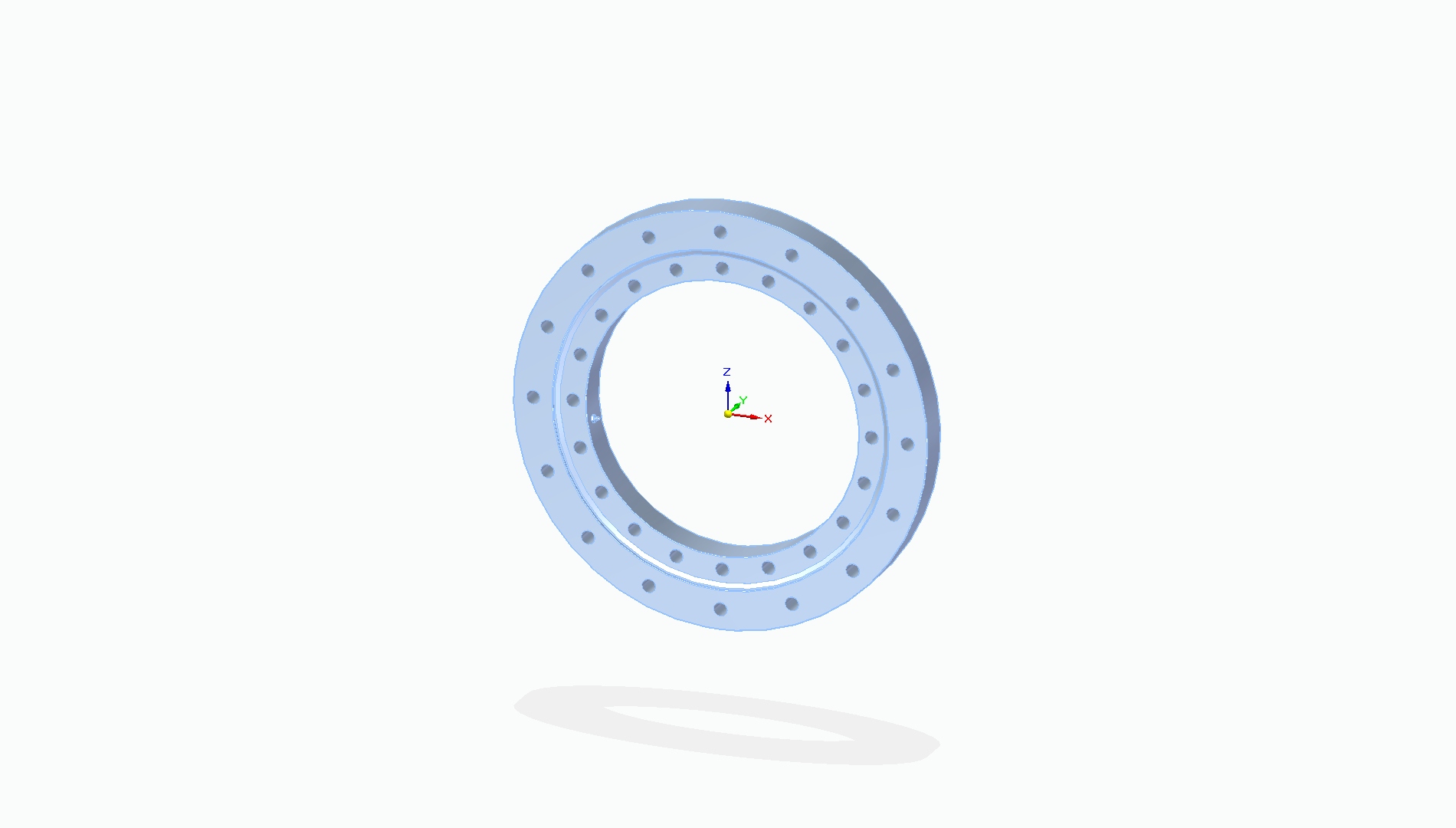

Note: If you are unable to view an active 3D PDF image, please use the button below to download the 3D PDF file and view with Adobe Reader
