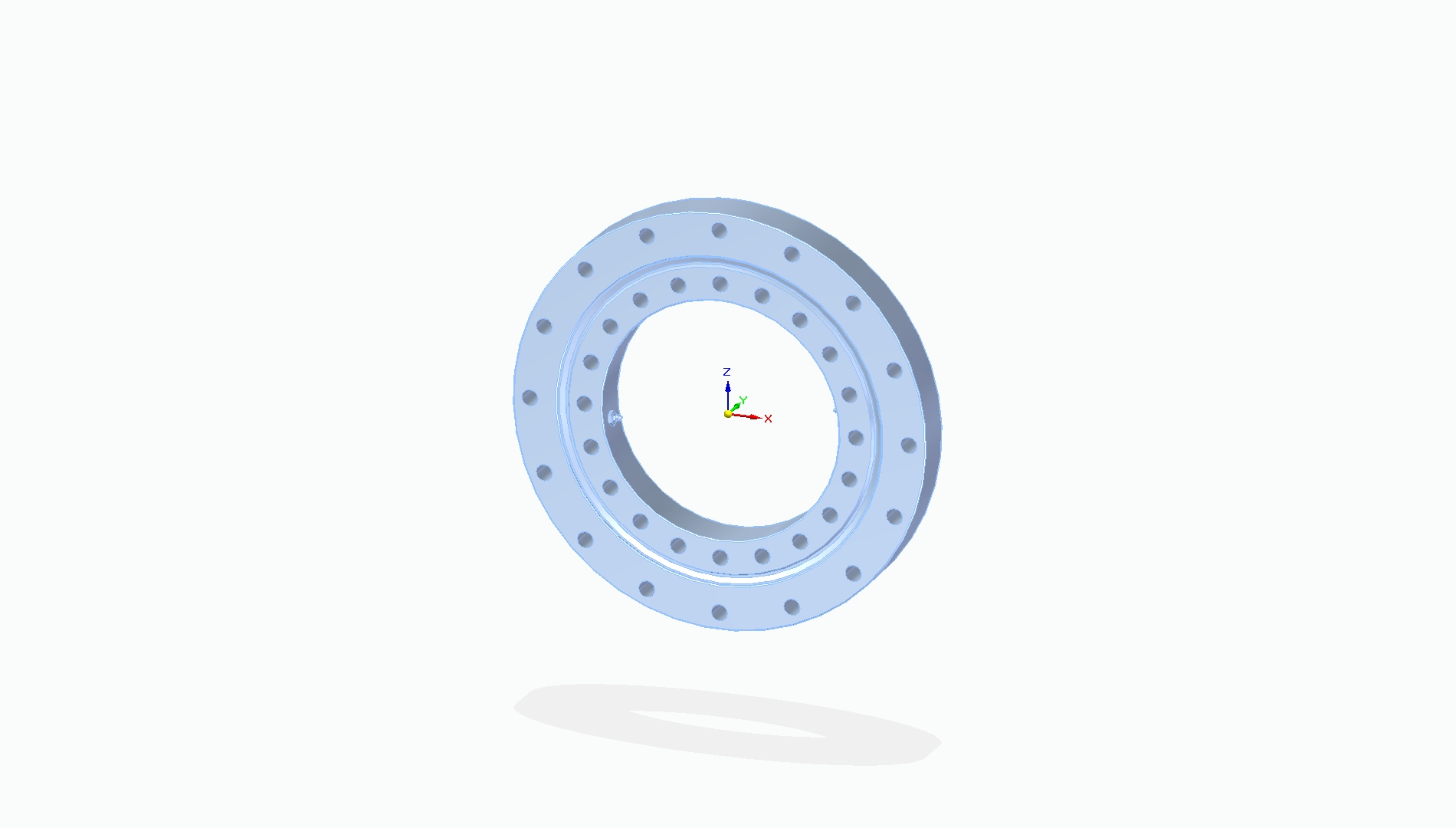

Model : CD-MTO-210
Specifications Imperial Metric
Cone Drive Part Number CD-MTO-210
Reference Kaydon Part Number MTO-210
Reference Torriani Part Number N/A
Type Standard
Teeth None

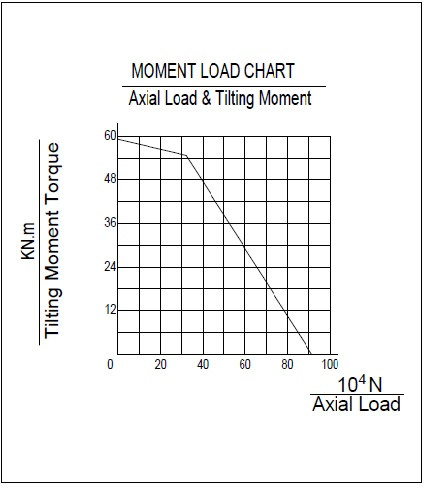

Max Moment Rating 44,500 ft-lbs 60,339 N-m
Approx. Weight 38 lbs 17.2 kg
Outer Diameter 14.37 in 365 mm
Inner Diameter 8.268 in 210 mm
Outer Bolt Circle Diameter 13.19 in 335 mm
Qty of Holes in Outer Ring 16
Outer Hole Size 0.571 in 14.5 mm
Inner Bolt Circle Diameter 9.449 in 240 mm
Qty of Holes in Inner Ring 20
Inner Hole Size 0.571 in 14.5 mm


Note: If you are unable to view an active 3D PDF image, please use the button below to download the 3D PDF file and view with Adobe Reader
