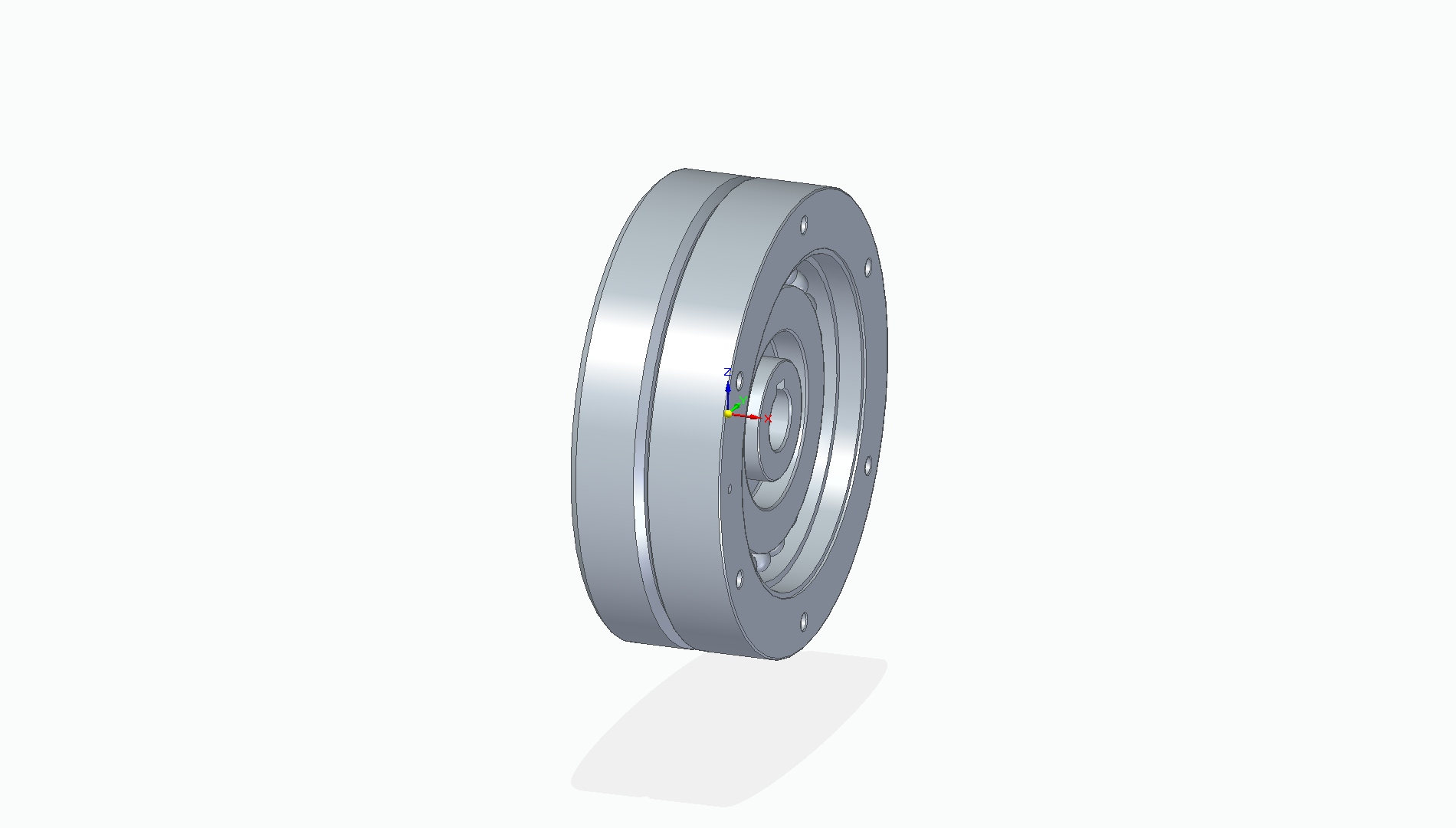

Model :RBC250100--

Series Size Ratio
RBC 25 100

Specifications
Model Number RBC250100--
Configuration Ring Big Component Set
Size 25
Ratio 100
Continuous Torque 65 Nm 575 lb-in
Start - Stop Torque 94 Nm 832 lb-in
Max Average Torque 94 Nm 832 lb-in
Peak Torque 156 Nm 1381 lb-in
Efficiency 57 %
No Load Input Torque 0.35 Nm 3.1 lb-in
Starting Torque 0.053 Nm 0.47 lb-in
Backdrive Starting Torque 13.2 Nm 117 lb-in
Mass 0.87 Kg 1.9 lb
Drivetrain Inertia at input 96 10-6 kg-m2 850 10-6 lb-in-s2
Torsional Stiffness - Lost Motion
T1 2.3 Nm 20.4 lb-in
T2 70 Nm 620 lb-in
K1 5.2 Nm/mRad 46 lb-in
K2 70 Nm/mRad 620 lb-in
K3 - -
Max Backlash 0.43 mRad
Hysteresis 0.82 mRad
