Model :RBC140050--

Series Size Ratio
RBC 14 050

Specifications
Model Number RBC140050--
Configuration Ring Big Component Set
Size 14
Ratio 50
Continuous Torque 6 Nm 53 lb-in
Start - Stop Torque 9.6 Nm 85 lb-in
Max Average Torque 9.6 Nm 85 lb-in
Peak Torque 17.7 Nm 157 lb-in
Efficiency 60 %
No Load Input Torque 0.072 Nm 0.64 lb-in
Starting Torque 0.039 Nm 0.35 lb-in
Backdrive Starting Torque 0.72 Nm 6.4 lb-in
Mass 0.22 Kg 0.49 lb
Drivetrain Inertia at input 6.2 10-6 kg-m2 55 10-6 lb-in-s2
Torsional Stiffness - Lost Motion
T1 0.39 Nm 3.5 lb-in
T2 12.3 Nm 109 lb-in
K1 0.9 Nm/mRad 8 lb-in
K2 10.1 Nm/mRad 89 lb-in
K3 - -
Max Backlash 0.43 mRad
Hysteresis 0.81 mRad

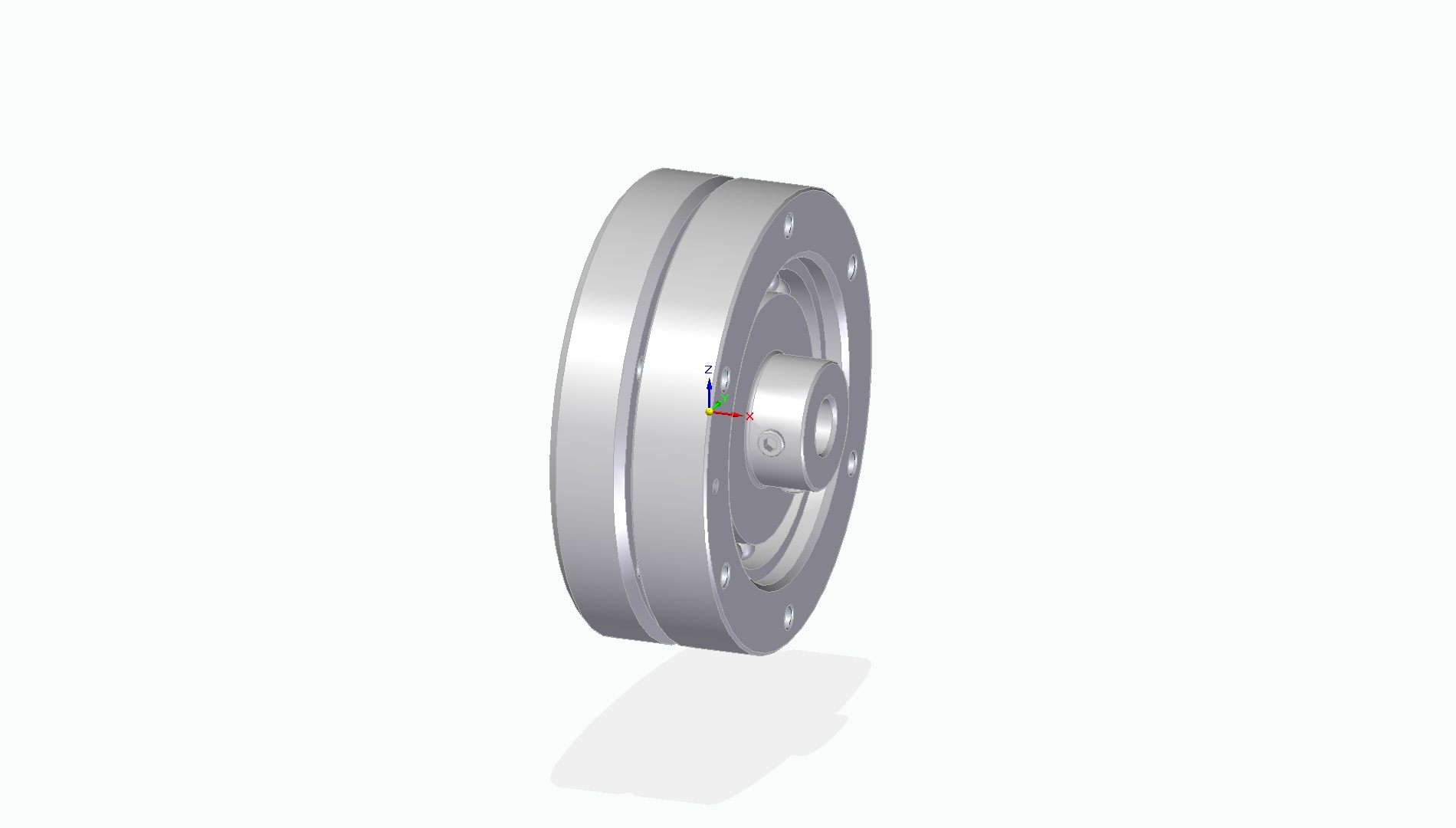

Note: If you are unable to view an active 3D PDF image, please use the button below to download the 3D PDF file and view with Adobe Reader
