Model :CBC140080--

Series Size Ratio
CBC 14 080

Specifications
Model Number CBC140080--
Configuration Cup Big Component Set
Size 14
Ratio 80
Continuous Torque 10.3 Nm 91 lb-in
Start - Stop Torque 30 Nm 266 lb-in
Max Average Torque 13.9 Nm 123 lb-in
Peak Torque 58 Nm 513 lb-in
Efficiency 74 %
No Load Input Torque 0.036 Nm 0.32 lb-in
Starting Torque 0.026 Nm 0.23 lb-in
Backdrive Starting Torque 1.5 Nm 13.3 lb-in
Mass 0.11 Kg 0.24 lb
Drivetrain Inertia at input 3.9 10-6 kg-m2 35 10-6 lb-in-s2
Torsional Stiffness - Lost Motion
T1 2 Nm 17.7 lb-in
T2 6.9 Nm 61 lb-in
K1 4.7 Nm/mRad 42 lb-in
K2 6.1 Nm/mRad 54 lb-in
K3 7.1 Nm/mRad 63 lb-in
Max Backlash 0.11 mRad
Hysteresis 0.29 mRad

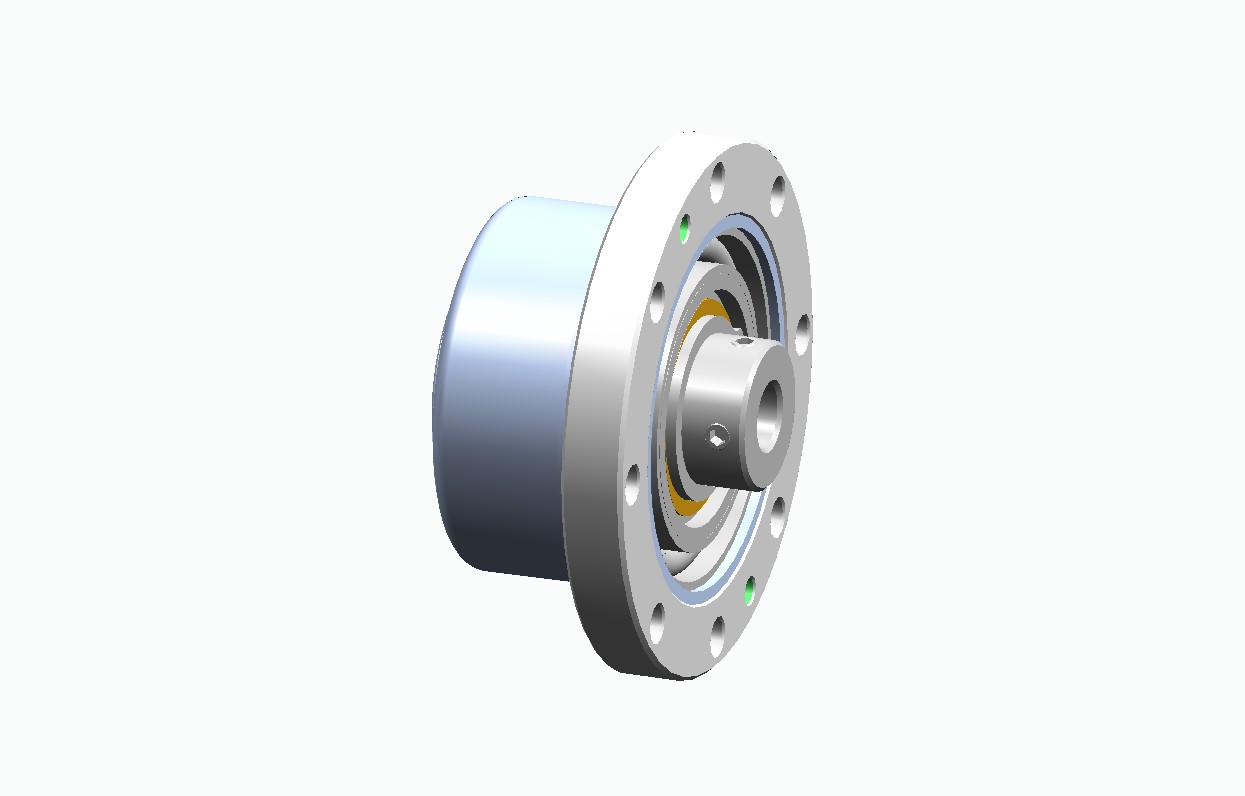

Note: If you are unable to view an active 3D PDF image, please use the button below to download the 3D PDF file and view with Adobe Reader
