Cup Style Harmonic Solutions Product Range
CBC

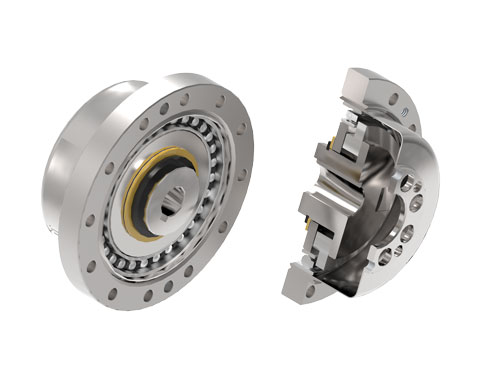

DETAILS >>CBCF-
DETAILS >>CBC-L
DETAILS >>CBG
DETAILS >>CBGF-

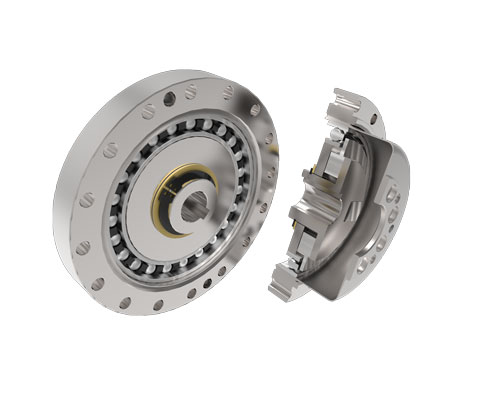

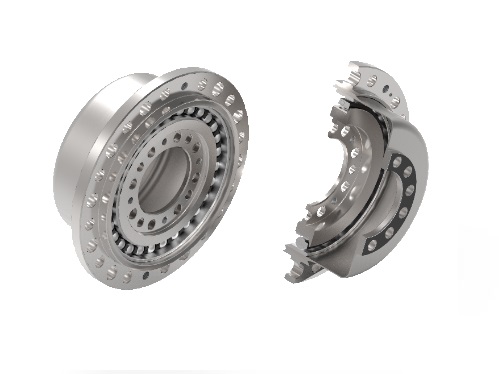

DETAILS >>Cup Component Set
- Space efficient, simple design- Design conducive to machinery integration requirements- Complete customization available- Dimensionally interchangeable with competitive products- Compare to ‘High Torque’ version from competitors- View now on our configurator |
|
Cup Component Set 'F Style' Bolt Pattern
- Space efficient, simple design- Design conducive to machinery integration requirements- Complete customization available- Same internal components as standard CBC component gearset- Bolt patterns to match competitors lower torque ‘F’ style- Contact Cone Drive for details at AE@conedrive.com |
|
Cup Component Set - Lightweight
- Simplified design reduces mass up to 45%- Large bore allows cable / equipment to pass through gearing- Design conducive to machinery integration requirements- Complete customization available- Contact Cone Drive for details at AE@conedrive.com |
|

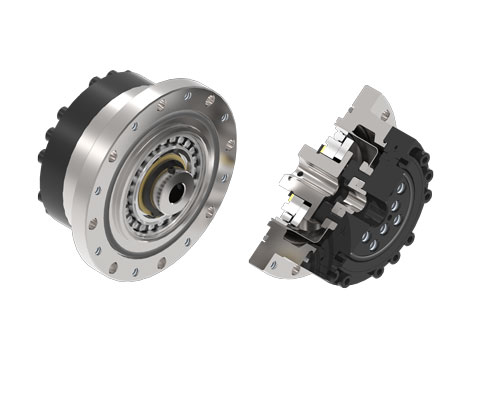

Cup Gearhead
- Housed output with crossed roller bearing included- Complete customization available- Dimensionally interchangeable with competitive products- Compare to ‘High Torque’ version from competitors- View now on our configurator |
|
Cup Gearhead 'F Style' Bolt Pattern
- Housed output with crossed roller bearing included- Same internal components as standard CBG gearhead- Complete customization available- Bolt patterns to match competitors lower torque ‘F’ style- Contact Cone Drive for details at AE@conedrive.com |
|
|
Hat Style Harmonic Solutions Product Range

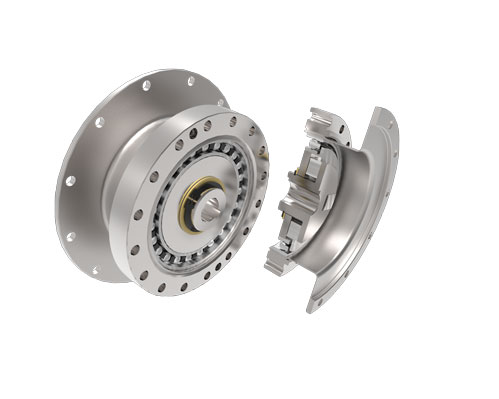

HBC
DETAILS >>HBCF-
DETAILS >>HBG
DETAILS >>HBGT-

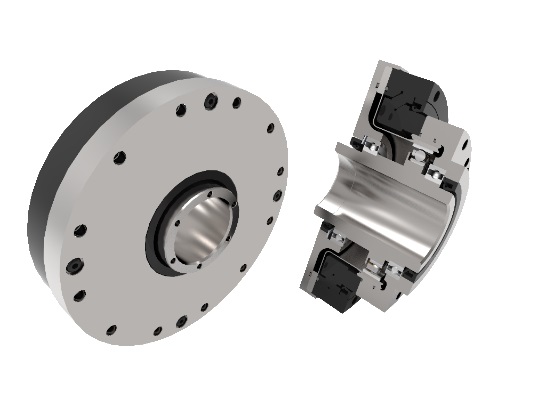

DETAILS >>HBGHL
DETAILS >>Hat Component Set
- Space efficient, simple design- Design conducive to machinery integration requirements- Complete customization available- Dimensionally interchangeable with competitive products- Compare to ‘High Torque’ version from competitors- View now on our configurator |
|

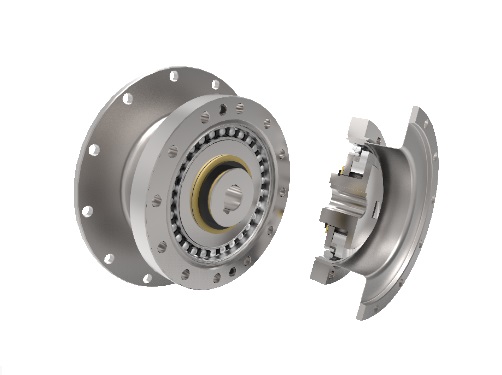

Hat Component Set - 'F Style' Bolt Pattern
- Space efficient, simple design- Design conducive to machinery integration requirements- Complete customization available- Same internal components as standard HBC component gearset- Bolt patterns to match competitors lower torque ‘F’ style- Contact Cone Drive for details at AE@conedrive.com |
|

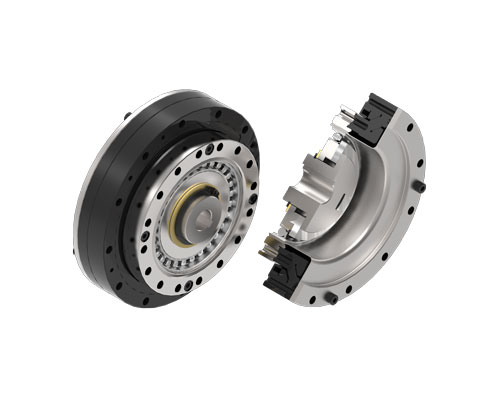

Hat Gearhead
- Housed output with crossed roller bearing included- Complete customization available- Dimensionally interchangeable with competitive products- Compare to ‘High Torque’ version from competitors- View now on our configurator |
|

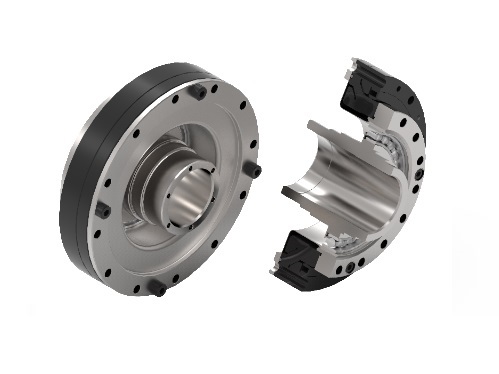

Hat Gearhead - Throughbore
- Housed output with crossed roller bearing included- Large hollow shaft allows cable / equipment to pass through gearing- Complete customization available- Same internal components as standard HBG gearhead- Compare to ‘High Torque’ version from competitors- Contact Cone Drive for details at AE@conedrive.com |
|
Hat Gearhead - Sealed Throughbore
- Housed output with crossed roller bearing included- Large hollow shaft allows cable / equipment to pass through gearing- Complete customization available- Same internal components as standard HBG gearhead- Fully supported and sealed gearhead- Contact Cone Drive for details at AE@conedrive.com |
|
Ring Style Harmonic Solutions Product Range
RLC
DETAILS >>RBC

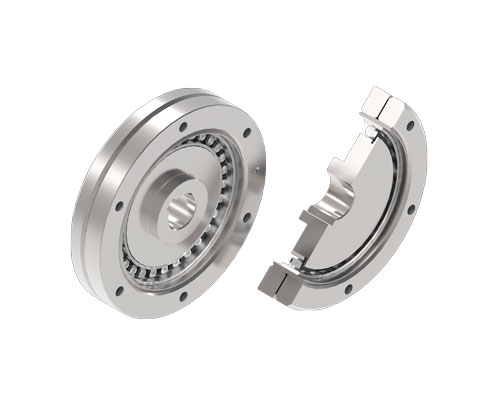

DETAILS >>Ring RLC Component Set
- Axially compact design for tight spaces- Low backlash < 3arcmin- Ratios up to 160:1 in a single stage- Complete customization available- View now on our configurator |
|

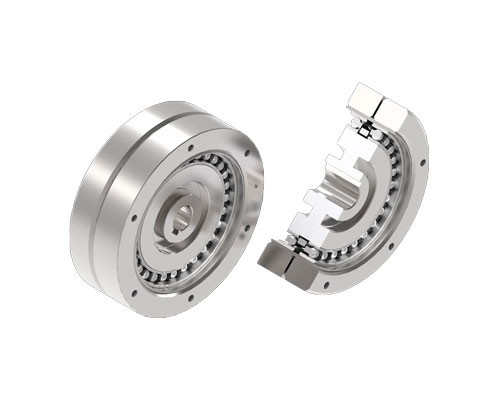

Ring RBC Component Set
- Higher torque capacity than RLC- Axially compact design for tight spaces- Low backlash < 3arcmin- Ratios up to 160:1 in a single stage- Complete customization available- Contact Cone Drive for details at AE@conedrive.com |
|
Custom Actuator Harmonic Solutions
GMA-H (Hollow)
DETAILS >>GMA-S (Solid)
DETAILS >>Stepper Integrated
DETAILS >>CDHS GMA Ultra-Flat / Slim Gearmotor Actuator (Hollow Shaft)

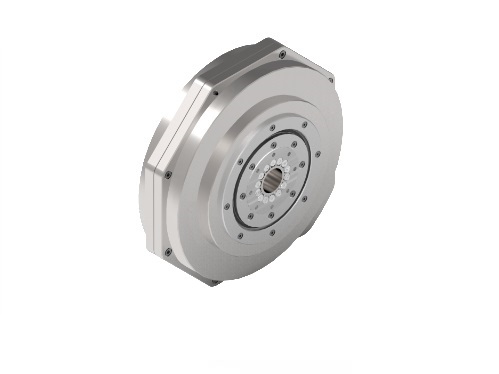

- High power density- High motor efficiency- Half the axial length of competitor's actuators- Flexible form factor and interface design- Highly customizable performance specifications- Ratios up to 160:1 in a single stage- Complete gearmotor assembly for your project- Contact Cone Drive for details at AE@conedrive.com |
|

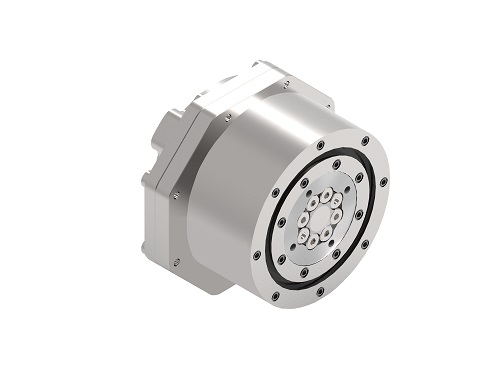

CDHS GMA Ultra-Light Gearmotor Actuator (Solid Shaft)
- High power density- High motor efficiency- Up to 65% less weight than competitor's actuators- Flexible form factor and interface design- Highly customizable performance specifications- Ratios up to 160:1 in a single stage- Complete gearmotor assembly for your project- Contact Cone Drive for details at AE@conedrive.com |
|

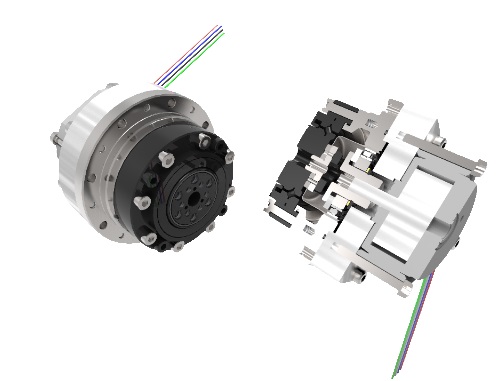

Cup Gearhead with NEMA Stepper Motor
- All gearhead styles, sizes and ratios- Complete gearmotor assembly for your project- Complete customization available- Contact Cone Drive for details at AE@conedrive.com |
|
